Obscure minute detail technical question of the year

Postby (kennyhowes) » Sat Jun 13, 2009 4:16 am

"R" tailpiece bracket mounting holes. Did they change over the years? (i.e. were the early ones spread out differently?)

User avatar
(kennyhowes)
Veteran RRF member

Posts: 4624
Joined: Sat Jan 27, 2001 2:03 am
Location: Atlanta, GA USA

Re: Obscure minute detail technical question of the year

Postby (kiramdear) » Sat Jun 13, 2009 4:20 am

I believe the answer is yes. Wes looked into it once when he was considering buying my '82 "R", and discovered that the holes wouldn't match the ones on his Sixties model. The whole tailpiece was different in the Sixties than it was in the Eighties.
All I wanna do is rock!
User avatar
(kiramdear)
RRF Moderator

Posts: 9045
Joined: Fri Jun 27, 2008 3:51 am
Location: Out there

Re: Obscure minute detail technical question of the year

Postby (collin) » Sat Jun 13, 2009 6:07 am

Yeah, the sixties versions had the screw holes slightly wider apart (it might be the other way around....I can't remember). If I can get some time and a screwdriver together in the next few days I'll take a picture.

I believe the actual tailpieces are the same, right? Only the brackets are different...? I'll need to compare those too.


It's not such a minute detail when you have to drill new holes in your guitar! Plus original-specs etc....
User avatar
(collin)
Senior Member

Posts: 6404
Joined: Wed Mar 21, 2007 7:28 pm
Location: Corona, CA, USA

Re: Obscure minute detail technical question of the year

Postby (kiramdear) » Sat Jun 13, 2009 7:03 am

collin wrote:
I believe the actual tailpieces are the same, right? Only the brackets are different...? I'll need to compare those too.


Here's a thread where we discussed the differences. Too bad the pictures have been removed but there's more info about it.

http://www.rickresource.com/forum/viewtopic.php?f=1&t=387384&p=520240&hilit=tailpiece+sixties+eighties#p520240
All I wanna do is rock!
User avatar
(kiramdear)
RRF Moderator

Posts: 9045
Joined: Fri Jun 27, 2008 3:51 am
Location: Out there

Re: Obscure minute detail technical question of the year

Postby (jps) » Sat Jun 13, 2009 11:07 am

kiramdear wrote:Here's a thread where we discussed the differences. Too bad the pictures have been removed but there's more info about it.

That is why I prefer to attach my photos! :wink:
(Insert famous quote here)
User avatar
(jps)
RRF Consultant

Posts: 35824
Joined: Wed Feb 12, 2003 7:00 am
Location: Not of this Earth

Re: Obscure minute detail technical question of the year

Postby (kennyhowes) » Sat Jun 13, 2009 12:26 pm

Weird. I've changed the hardware on two of my '67 Rics and never run across this. Maybe it's the earlier ones that have the wider spacing?

Well ****. This means I need an early '60s "R" tailpiece bracket, stat. :roll:
User avatar
(kennyhowes)
Veteran RRF member

Posts: 4624
Joined: Sat Jan 27, 2001 2:03 am
Location: Atlanta, GA USA

Re: Obscure minute detail technical question of the year

Postby (kennyhowes) » Sun Jun 14, 2009 6:26 pm

So...does anybody happen to have an earlier bracket? I looked through my stuff and thought I had one, but no.
User avatar
(kennyhowes)
Veteran RRF member

Posts: 4624
Joined: Sat Jan 27, 2001 2:03 am
Location: Atlanta, GA USA

Re: Obscure minute detail technical question of the year

Postby (kiramdear) » Sun Jun 14, 2009 6:29 pm

I think I heard that replacement brackets are available for the old style from another maker. I think my buyer mentioned that, but he wanted the upper part to be period, too.
All I wanna do is rock!
User avatar
(kiramdear)
RRF Moderator

Posts: 9045
Joined: Fri Jun 27, 2008 3:51 am
Location: Out there

Re: Obscure minute detail technical question of the year

Postby (1965) » Sun Jun 14, 2009 7:53 pm

collin wrote:I believe the actual tailpieces are the same, right? Only the brackets are different...?

Definitely different. Vintage on the left. This one doesn't match the hole pattern on my '65. Seems like many (most?) of the vintage ones were drilled crooked/differently.



I did this to mine, kept the holes intact. I prefer the trapeze.

User avatar
(1965)
Advanced Member

Posts: 1607
Joined: Thu Mar 13, 2008 12:01 am

Re: Obscure minute detail technical question of the year

Postby (danm) » Sun Jun 14, 2009 10:37 pm

I took the above comparison pics when I got that tailpiece (off a '66, I think?) to put on my '65.
The holes look drilled by hand to me since they're neither level, nor equal distances apart from the strap button.

* sorry the pics disappeared from that earlier thread. When I changed my Flickr preferences, it changed the urls of all my photos.
User avatar
(danm)
Junior Member

Posts: 124
Joined: Sat Feb 03, 2007 7:50 pm
Location: Arlington, VA

Re: Obscure minute detail technical question of the year

Postby (collin) » Mon Jun 15, 2009 12:56 am

Total long shot but does anybody want to trade a vintage 12 R for a vintage 6 string R, off a '66 330? No bracket swap though...
User avatar
(collin)
Senior Member

Posts: 6404
Joined: Wed Mar 21, 2007 7:28 pm
Location: Corona, CA, USA

Re: Obscure minute detail technical question of the year

Postby (xcoyle) » Mon Jun 15, 2009 11:02 am

Great pics Wes. It looks like the string slots were cut after it was cast on the vintage, and the newer ones the string slots are part of the casting.
(xcoyle)
Intermediate Member

Posts: 688
Joined: Mon Apr 26, 2004 6:48 pm
Location: Chicago, IL,

Re: Obscure minute detail technical question of the year

Postby (kennyhowes) » Mon Jun 15, 2009 1:08 pm

1965 wrote:Definitely different. Vintage on the left. This one doesn't match the hole pattern on my '65. Seems like many (most?) of the vintage ones were drilled crooked/differently.



The one on the left is what I'm looking for...looks like it'd work...

Y'learn something new about this stuff every day.
User avatar
(kennyhowes)
Veteran RRF member

Posts: 4624
Joined: Sat Jan 27, 2001 2:03 am
Location: Atlanta, GA USA

Re: Obscure minute detail technical question of the year

Postby (collin) » Fri Jun 19, 2009 1:48 am

collin wrote:Total long shot but does anybody want to trade a vintage 12 R for a vintage 6 string R, off a '66 330? No bracket swap though...



I will quote myself here and answer my own question! :oops:

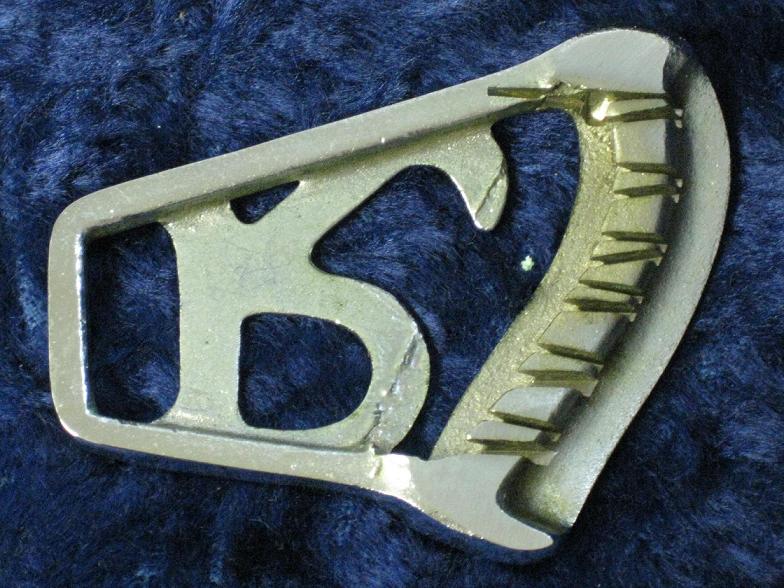

Imagine my surprise when I dissasembled this 6 string parts guitar and found the R tailpiece was already cut for 12 strings (were they all like that?).

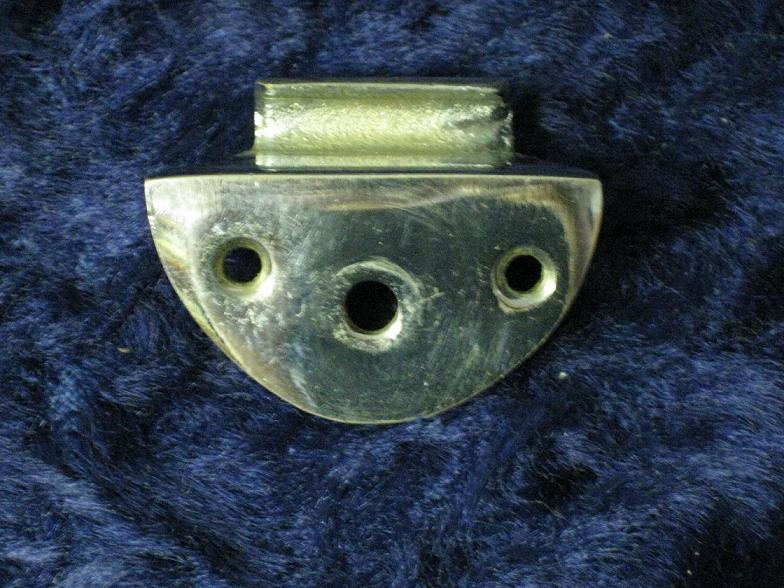

You guys are right, the bracket holes are all funky---I think the drill meister was drunk the same day for yours and mine both, Dan. :lol:

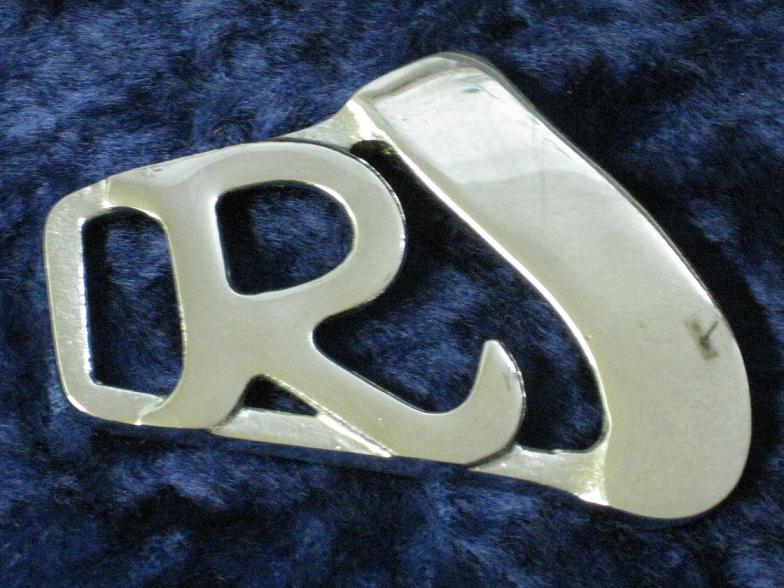

Also, is the casting usually this rough for the older R's ? They are definitely different than modern ones, for sure. Much flatter, and rougher.

User avatar
(collin)
Senior Member

Posts: 6404
Joined: Wed Mar 21, 2007 7:28 pm
Location: Corona, CA, USA

Re: Obscure minute detail technical question of the year

Postby (jdogric12) » Fri Jun 19, 2009 9:00 am

I've seen lots of 12-string tp's on 6-strings, usually BT though.
(jdogric12)
Rick-a-holic

Posts: 10135
Joined: Thu Dec 29, 2005 7:00 am
