1973 Rickenbacker 4000 pickguard

Postby (gllimelight8) » Fri Jul 13, 2012 5:28 pm

Where can I get one? No, I don't have a template. Neither does Pickguardian.
(gllimelight8)
New member

Posts: 2
Joined: Tue Nov 16, 2010 3:17 pm

Re: 1973 Rickenbacker 4000 pickguard

Postby (jps) » Fri Jul 13, 2012 6:14 pm

Hmm, how different is it from other '73 4001 pickguards other than the, obviously, missing pickup hole?

Tony has made a few PGs for me for a couple different '73 4001s and they all fit just fine.
User avatar
(jps)
RRF Consultant

Posts: 36226
Joined: Wed Feb 12, 2003 6:00 am
Location: Not of this Earth

Re: 1973 Rickenbacker 4000 pickguard

Postby (aceonbass) » Fri Jul 13, 2012 6:40 pm

The location of the two control holes will be specific to a 4000. There are a few people with 4000's on the board, so I'm sure someone will speak up.
User avatar
(aceonbass)
Veteran RRF member

Posts: 6548
Joined: Tue Jul 09, 2002 5:00 am
Location: Parkville, Missouri

Re: 1973 Rickenbacker 4000 pickguard

Postby (jps) » Fri Jul 13, 2012 8:04 pm

I forgot about the control holes! I have had Tony make me pickguards with no control holes so I can do what i want with them. The basic outline should be the same between a 4001 and 4000 PG from that era, right?
User avatar
(jps)
RRF Consultant

Posts: 36226
Joined: Wed Feb 12, 2003 6:00 am
Location: Not of this Earth

Re: 1973 Rickenbacker 4000 pickguard

Postby (johnallg) » Fri Jul 13, 2012 11:38 pm

Kind of looks like they are in the 4001's two volume positions.

User avatar
(johnallg)
Rick-a-holic

Posts: 17688
Joined: Wed Apr 05, 2006 12:13 pm

Re: 1973 Rickenbacker 4000 pickguard

Postby (aceonbass) » Sat Jul 14, 2012 2:41 am

johnallg wrote:Kind of looks like they are in the 4001's two volume positions.


Close, but not quite. The volume is a little too low, and the tone is a little too far forward.
User avatar
(aceonbass)
Veteran RRF member

Posts: 6548
Joined: Tue Jul 09, 2002 5:00 am
Location: Parkville, Missouri

Re: 1973 Rickenbacker 4000 pickguard

Postby (sloop_john_b) » Sat Jul 14, 2012 2:42 am

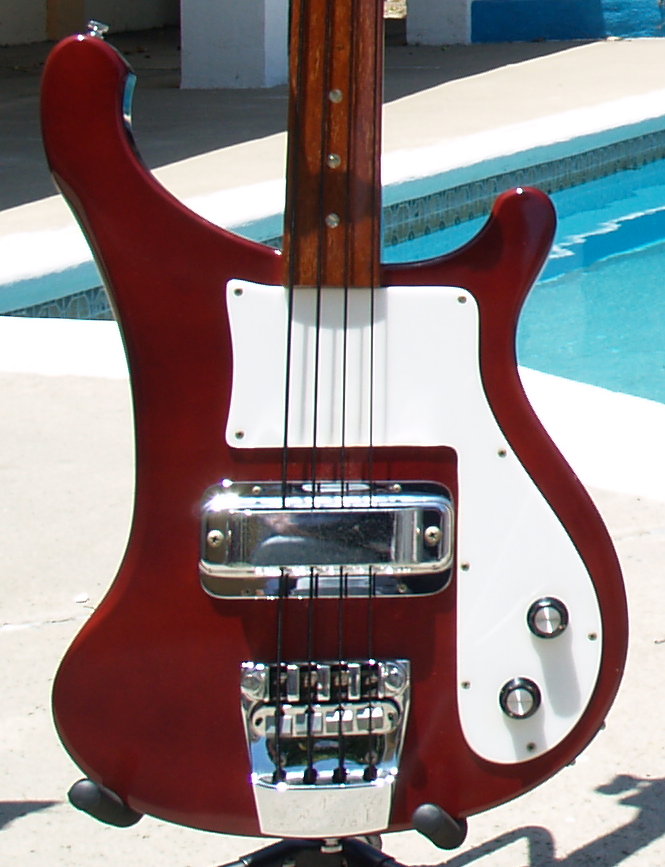

What a stunning 4000! :shock:
User avatar
(sloop_john_b)
Rick-a-holic

Posts: 13684
Joined: Tue Jan 25, 2005 6:00 am
Location: New York, New York

Re: 1973 Rickenbacker 4000 pickguard

Postby (s4001) » Sat Jul 14, 2012 3:50 pm

I just noticed the inlays, too. Nice touch!
User avatar
(s4001)
Senior Member

Posts: 3512
Joined: Sat Jul 16, 2005 5:00 am
Location: LBC, CA,

Re: 1973 Rickenbacker 4000 pickguard

Postby (rickenbrother) » Sat Jul 14, 2012 11:25 pm

That is a gorgeous 4000. The inlays are like the ones in my 4001FL, except they have ambered quite a bit and look very cool.
The JETGLO finish name should be officially changed to JETGLO ROCKS! :-)
User avatar
(rickenbrother)
RRF Moderator

Posts: 12942
Joined: Sun May 26, 2002 5:00 am
Location: Between a hammer and an anvil...

Re: 1973 Rickenbacker 4000 pickguard

Postby (doctorwho) » Sun Jul 15, 2012 5:01 pm

1977 4000 FL BG


I'll see what I can do about creating a pick guard template from my '77 4000 FL.
It is better, of course, to know useless things than to know nothing. - Seneca
User avatar
(doctorwho)
Veteran RRF member

Posts: 12202
Joined: Tue Jun 11, 2002 3:28 pm
Location: Costa Mesa, CA, USA

Re: 1973 Rickenbacker 4000 pickguard

Postby (blackrock) » Mon Jul 16, 2012 11:29 am

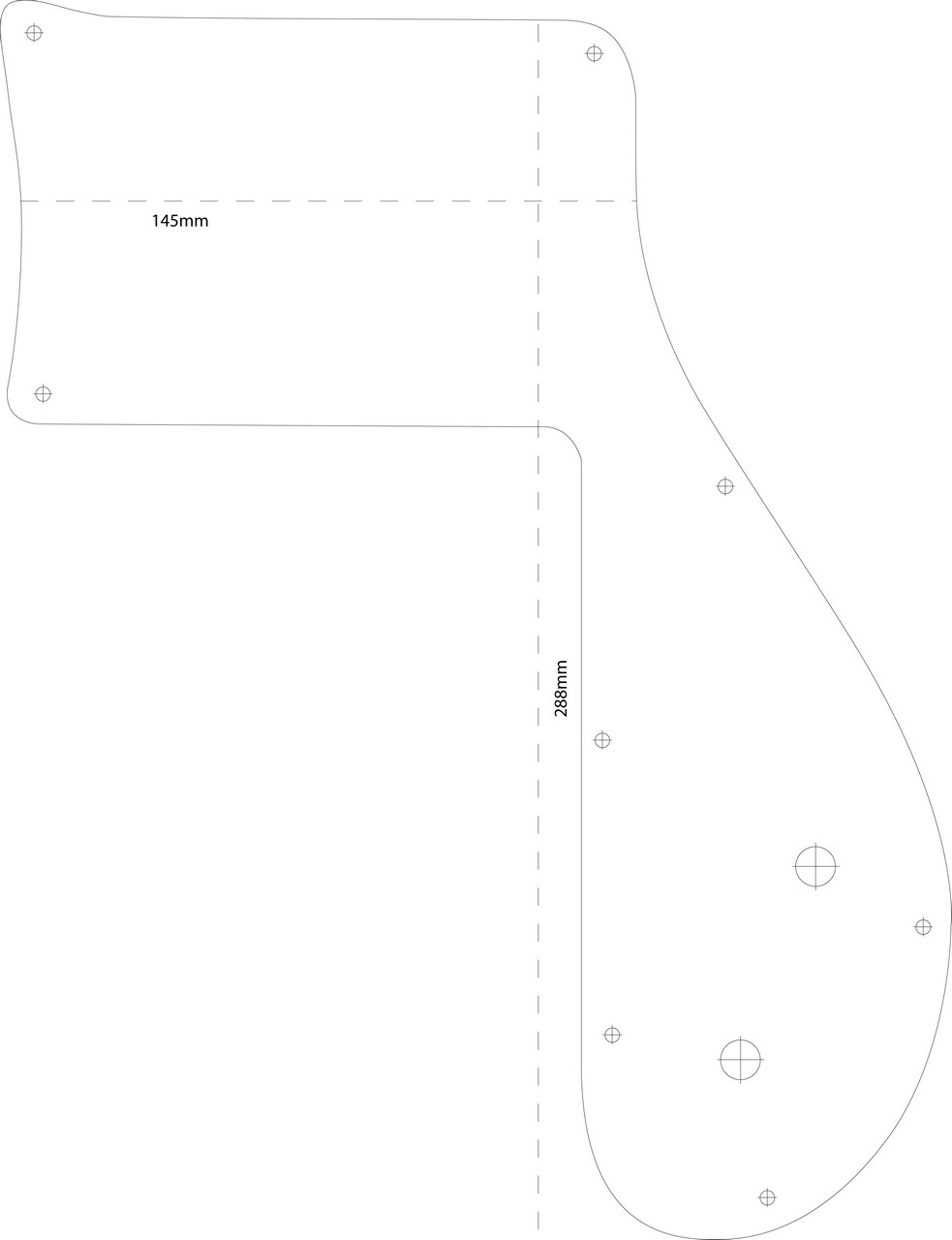

Thought I'd throw mine into the mix with any others which appear. I've made this template up using my Fireglo '75 4000's pickguard and turned it into a jpg to attach it to the post (original is an Illustrator vector).

I've just stuck on a couple of dimensions as a guide to check if printed. If you want other dimensions put on or whatever, just let me know.
Attachments
(blackrock)
New member

Posts: 16
Joined: Sun Feb 20, 2011 7:56 am

Re: 1973 Rickenbacker 4000 pickguard

Postby (gllimelight8) » Mon Jul 16, 2012 12:40 pm

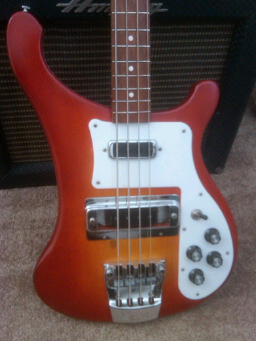

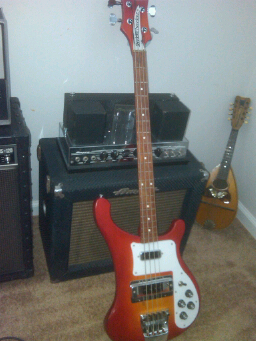

Thank you everyone for your help so far. Heres a couple pics of my 1973 4000. The loaded pickguard will be for sale soon if anyone is interested. Thanks again!
Attachments
(gllimelight8)
New member

Posts: 2
Joined: Tue Nov 16, 2010 3:17 pm

Re: 1973 Rickenbacker 4000 pickguard

Postby (blackrock) » Mon Jul 16, 2012 1:03 pm

Actually I forgot to mention a couple of things in my last post (with my little drawing).
At the risk of stating the obvious - I've located the screw holes exactly as they are on mine - so I daresay they might not align on another 4000 (on mine, for example, the one nearest the bridge pickup is noticably closer to the edge than the one further down).

Oh, and just to be totally clear, the dotted lines are just meant to indicate where I've measured the couple of dimensions I've given - ie 145mm from the innermost bit of the curve on the left, to the opposite side and 288mm from the flat bit up beside the neck to the outer curve at the bottom end.
(blackrock)
New member

Posts: 16
Joined: Sun Feb 20, 2011 7:56 am

Re: 1973 Rickenbacker 4000 pickguard

Postby (woodyng) » Mon Jul 16, 2012 4:18 pm

Why are you removing the extra pickup,etc? I have a 74 4000 that was never routed for the 2nd pickup,but if it had already been routed,i wouldn't hesitate to put in a 2nd pickup.
Ps is your 4000 a set-neck?
User avatar
(woodyng)
Senior Member

Posts: 4454
Joined: Thu Jan 11, 2007 11:11 am
Location: oregon coast

Re: 1973 Rickenbacker 4000 pickguard

Postby (jps) » Mon Jul 16, 2012 8:37 pm

woodyng wrote:Why are you removing the extra pickup,etc? I have a 74 4000 that was never routed for the 2nd pickup,but if it had already been routed,i wouldn't hesitate to put in a 2nd pickup.
Ps is your 4000 a set-neck?

Swap basses. :wink:
User avatar
(jps)
RRF Consultant

Posts: 36226
Joined: Wed Feb 12, 2003 6:00 am
Location: Not of this Earth
