Removing Body Binding

Post by gareth »

What the best way to get off old binding to prep for new purfling ?

Heat gun, tools, highly trained attack ferret ?

Now back to burning myself with Jasco......

I'd also like to remove the whole fretboard, so any ideas along those lines would help too.
User avatar
jingle_jangle
RRF Moderator
Posts: 22679
Joined: Wed Dec 22, 2004 6:00 am
Contact:

Re: Removing Body Binding

Post by jingle_jangle »

To remove binding, I use an Exacto #5 handle equipped with a #18 flat chisel blade. This will also fit the more common #2 handle, but is most comfortable and controllable when fitted to the #5 handle. Simply insert it into the binding and use it to peel as a wedge, sliding it in the direction of the edge. The binding usually pries free easily, unless some previous numnutz has superglued it into place, in which case it'll be a five pint (minimum) evening.

http://www.dickblick.com/products/x-acto-blades/

You need heat to remove a fretboard, or highly-trained Jacarepaguá termites, at $35.00 per dozen plus import permits.


I use a beam heater, after pulling the frets. I fasten the beam to the board using cinch-tight nylon straps, and crank it up to around 300°F fort an hour or so. Then, I run a palette or skiving knife into the glue joint, proceeding carefully. The glue must be soft (hot) or you'll pull up neck wood at the same time.

User avatar
gareth
Intermediate Member
Posts: 655
Joined: Mon Apr 18, 2005 8:55 am
Contact:

Re: Removing Body Binding

Post by gareth »

jingle_jangle wrote: I use a beam heater, after pulling the frets. I fasten the beam to the board using cinch-tight nylon straps, and crank it up to around 300°F fort an hour or so. Then, I run a palette or skiving knife into the glue joint, proceeding carefully. The glue must be soft (hot) or you'll pull up neck wood at the same time.
Oh right, exacto I can do. Thanks !

I'm really glad I asked about the neck, as mine's already been peeled up by the previous owner up to the second fret. I was just going to get underneath it with a heat gun, and from what you tell me, that might have resulted in a case of Tourettes before bedtime. I think I'll leave that job to an eminently more qualified individual (read:you).

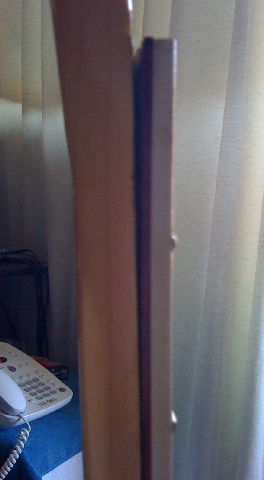

Here's what it looks like. Tempting to try to peel that off huh ?
That 100 grit/Jasco/220 grit system is working well for removing the finish and sanding down. I never realised just how thick that was though ! No wonder that sucks up so much of your time on these jobs !
