I know it should be somewhat like the J-Bass-electronics diagram, but the RIC HBs have more wires and I don't wanna mix them up...
Thanx in advance!
Pete
Wiring Diagram for 4004 VVT mod. please!
Moderators: rickenbrother, ajish4
Wiring Diagram for 4004 VVT mod. please!
...does anybody have such diagram for me? I know it should be somewhat like the J-Bass-electronics diagram, but the RIC HBs have more wires and I don't wanna mix them up...
Thanx in advance!
Pete
I know it should be somewhat like the J-Bass-electronics diagram, but the RIC HBs have more wires and I don't wanna mix them up... Thanx in advance!
Pete
Re: Wiring Diagram for 4004 VVT mod. please!
It is the J bass wiring if you want the HB1's to be what they are. They should come with the 2 halfs already connected, so you'd have a hot and ground.
Here's the RIC schematic for the HB1
http://www.rickenbacker.com/pdfs/19521-HB1%20Wiring.pdf

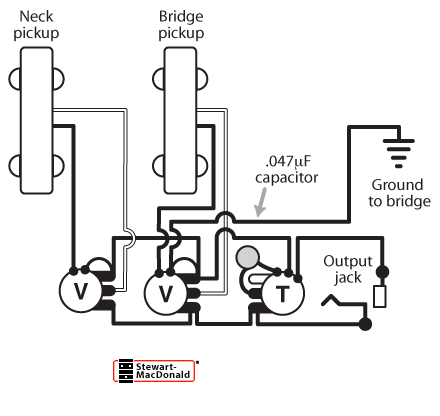

Black and clear are supposed to be wired together, leaving Red as the hot lead, and the blue/shielding as the ground . From there you can follow this, with blue/shield as the black, and the red as the gray:
Here's the RIC schematic for the HB1
http://www.rickenbacker.com/pdfs/19521-HB1%20Wiring.pdf
Black and clear are supposed to be wired together, leaving Red as the hot lead, and the blue/shielding as the ground . From there you can follow this, with blue/shield as the black, and the red as the gray:
