Chequerboard headstock binding

Setup, repair and restoration of Rickenbacker Instruments

Moderator: jingle_jangle

User avatar
cheyenne
Veteran RRF member
Posts: 6232
Joined: Fri Feb 16, 2001 11:39 am

Re: Chequerboard headstock binding

Post by cheyenne »

Also, didnt the 4002's come with checker bound heads?
"Knowledge is Power"
User avatar
sloop_john_b
Rick-a-holic
Posts: 13843
Joined: Tue Jan 25, 2005 6:00 am

Re: Chequerboard headstock binding

Post by sloop_john_b »

User avatar
beatlefan
Senior Member
Posts: 4345
Joined: Mon May 19, 2003 4:13 pm

Re: Chequerboard headstock binding

Post by beatlefan »

Ahhhhh.....the "dumpster" bass......


(sigh)
1973 4001 MG cb fwi
1986 4003 Shadow
2012 4004Cii FG w/gold trim
User avatar
cjj
RRF Moderator
Posts: 10907
Joined: Tue Jul 22, 2008 6:17 pm
Contact:

Re: Chequerboard headstock binding

Post by cjj »

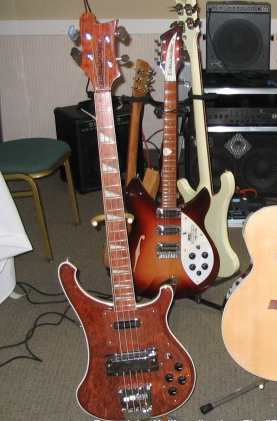

cheyenne wrote:Not sure, but that bound 4001 must be the coveted "Dumpster bass".
No, that's a restoration done by "GW Basses & Luthiery":
http://www.gwbasses.com/customshop/ric_ ... trod.shtml

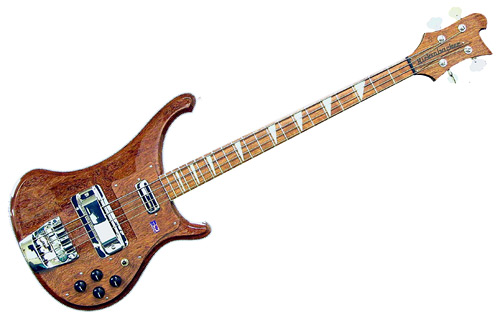

The "Dumpster" bass does not have a bound headstock (as far as I can tell):
I have NO idea what to do with those skinny stringed things... I'm just a bass player...
User avatar
basshead
RRF Consultant
Posts: 241
Joined: Sat Aug 25, 2012 9:17 am

Re: Chequerboard headstock binding

Post by basshead »

When it comes time to route the body to add block binding to it, I've seen from numerous repair/restore posts and pics that the block binding route is not to the same depth as the outer layer of white binding's route.

Is there a rule for this? I mean along the lines of "route block binding 37/58ths of white binding depth" Or is it just rule of thumb?

Also, what depth for headstock block binding route?
E = Fb
Bass player's theory of relativity...
User avatar
jingle_jangle
RRF Moderator
Posts: 22679
Joined: Wed Dec 22, 2004 6:00 am
Contact:

Re: Chequerboard headstock binding

Post by jingle_jangle »

The checkerboard is properly called "purfling", with the outer layer of lamination referred to as "binding".

When I rout for checkerboard, I route headstock or body approximately 5/32" wide by 1/16" deep. The CB is then scraped flat once dry and the binding applied over it. Many luthiers apply both at once, but I like to take my time.

Following this, both binding and purfling are scraped and sanded level with the guitar's surface.
User avatar
jingle_jangle
RRF Moderator
Posts: 22679
Joined: Wed Dec 22, 2004 6:00 am
Contact:

Re: Chequerboard headstock binding

Post by jingle_jangle »

Here's a 360F, belonging to Graham:


Jazzmasters look good with CB!


Acoustic 12s:




Acoustic 6, slant fret:


Acoustic 6, fishtail headstock:


...and dozens more, but I don't think I've EVER cBd a bass headstock, though I've done them in black, tortoise and white...
User avatar
basshead
RRF Consultant
Posts: 241
Joined: Sat Aug 25, 2012 9:17 am

Re: Chequerboard headstock binding

Post by basshead »

Thanks Paul, you sure do gorgeous work. This old wreck doesn't owe me much and I reckon the chequerboard would look good on the bass headstock. Lol, one way to find out I guess...
E = Fb
Bass player's theory of relativity...
User avatar
aceonbass
Veteran RRF member
Posts: 6651
Joined: Tue Jul 09, 2002 5:00 am
Contact:

Re: Chequerboard headstock binding

Post by aceonbass »

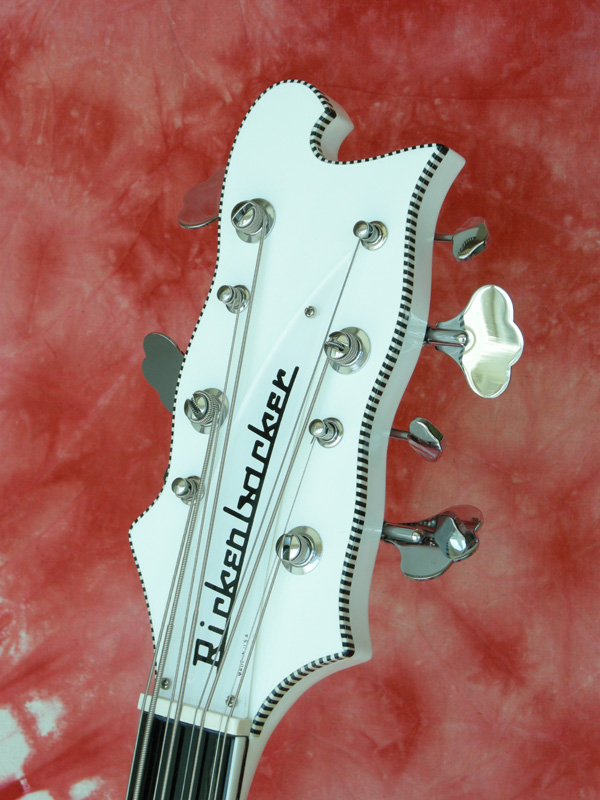

One of the 8 string 4003 conversions I did a few years ago was sent to Larry Davis to be checker bound and refinished. Here's the headstock.
Attachments
Rickenbacker 8.jpg
User avatar
basshead
RRF Consultant
Posts: 241
Joined: Sat Aug 25, 2012 9:17 am

Re: Chequerboard headstock binding

Post by basshead »

Very nice.
E = Fb
Bass player's theory of relativity...
User avatar
basshead
RRF Consultant
Posts: 241
Joined: Sat Aug 25, 2012 9:17 am

Re: Chequerboard headstock binding

Post by basshead »

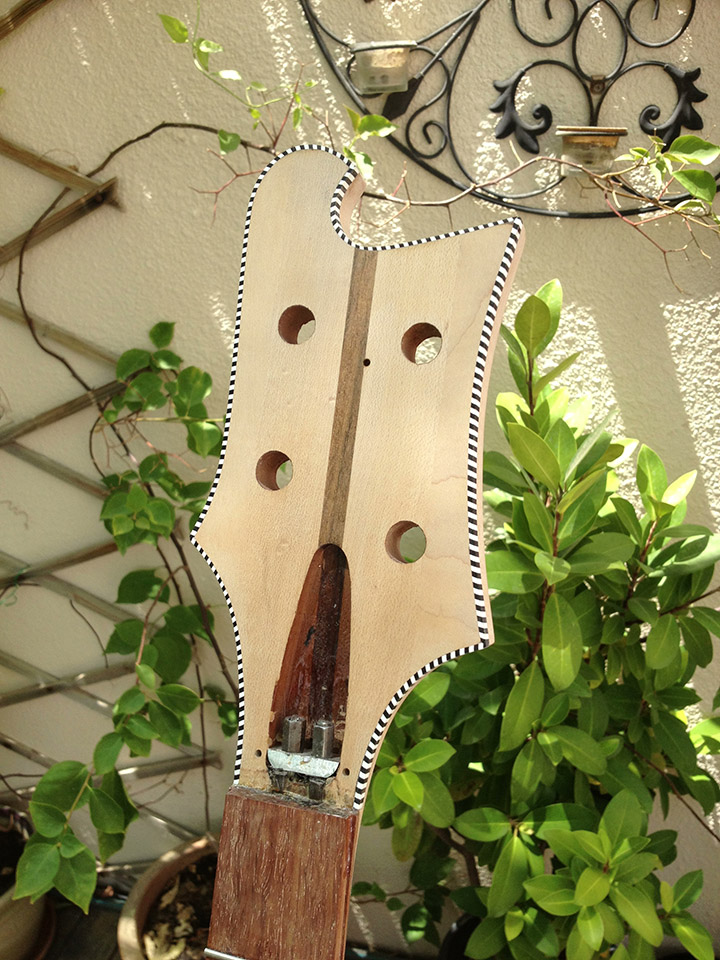

I think the 4001 headstock looks nice bound with chequered binding :D
Attachments
E = Fb
Bass player's theory of relativity...
User avatar
cjj
RRF Moderator
Posts: 10907
Joined: Tue Jul 22, 2008 6:17 pm
Contact:

Re: Chequerboard headstock binding

Post by cjj »

Yes, it does indeed!
8) 8) 8)
I have NO idea what to do with those skinny stringed things... I'm just a bass player...
User avatar
jps
RRF Consultant
Posts: 37216
Joined: Wed Feb 12, 2003 6:00 am

Re: Chequerboard headstock binding

Post by jps »

+1. 8) Now that you have gone that far, why not add walnuts wings to the headstock? :wink:
User avatar
basshead
RRF Consultant
Posts: 241
Joined: Sat Aug 25, 2012 9:17 am

Re: Chequerboard headstock binding

Post by basshead »

jps wrote:+1. 8) Now that you have gone that far, why not add walnuts wings to the headstock? :wink:
Nah, I'm gonna go with Azureglo
E = Fb
Bass player's theory of relativity...
User avatar
cjj
RRF Moderator
Posts: 10907
Joined: Tue Jul 22, 2008 6:17 pm
Contact:

Re: Chequerboard headstock binding

Post by cjj »

But.... but.... you could still paint Azureglo over walnut headstock wings....
:roll: :lol: :lol:
I have NO idea what to do with those skinny stringed things... I'm just a bass player...
