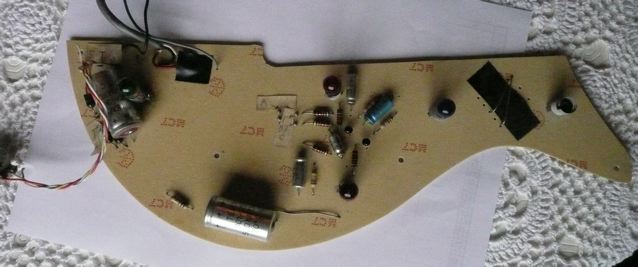

I removed one half of the broken socket................and then the other.............

[8mileshigh]

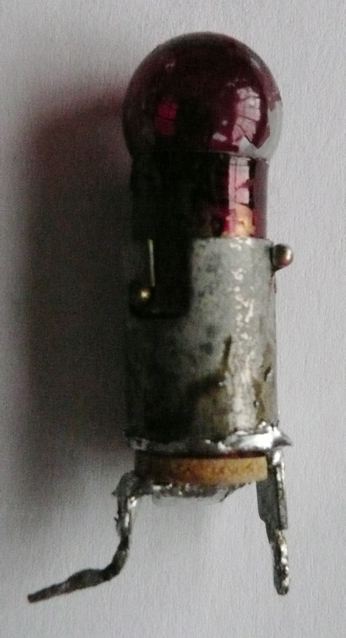

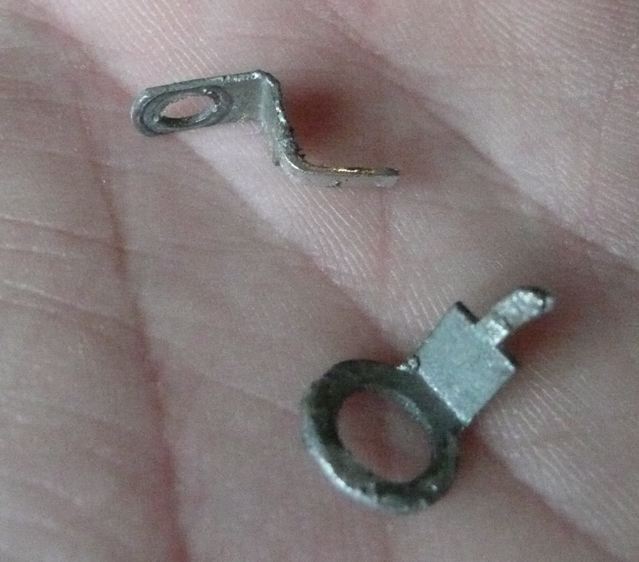

Which left me with these 2 parts of the broken socket...................

[8mileshigh]

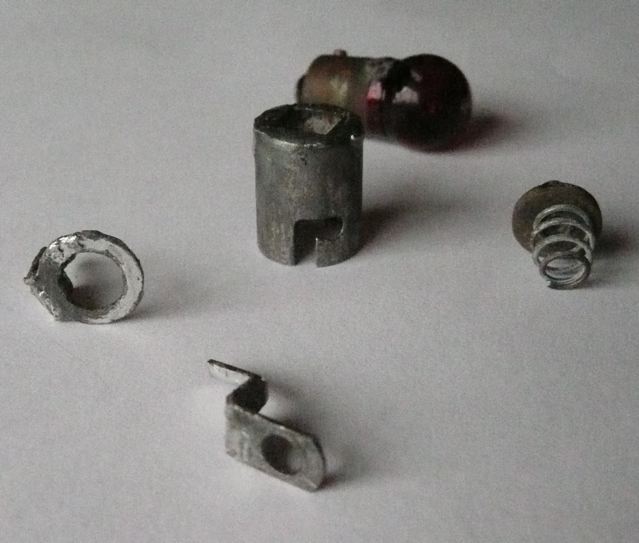

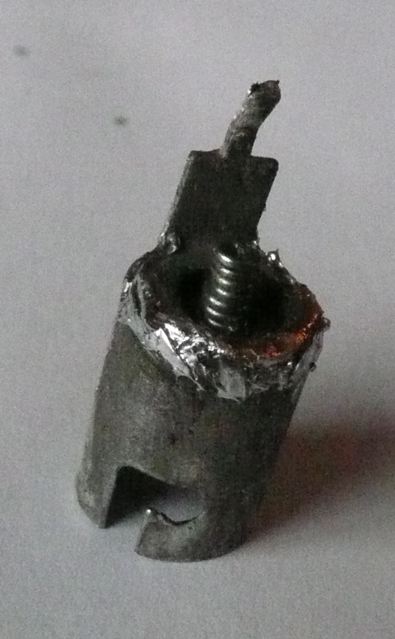

So I was left with the 4 components, that go together to make the completed socket....................first part to assemble was the main body of the socket and the part on the left...............these 2 parts just solder together..............

[8mileshigh]

First I soldered the main socket body, to the left hand tail part................. I pushed the spring part inside just to give me a guide that the tail part was centred.....................

[8mileshigh]

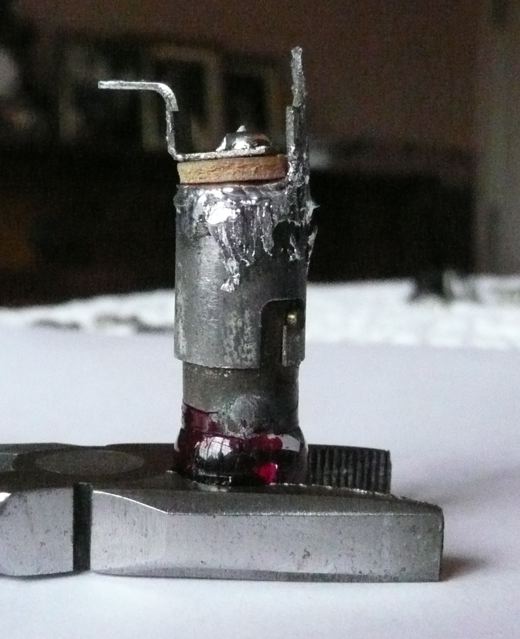

Then I put the insulating disc on top of that and then soldered the second half of the tail on.....................this also holds the spring in place and holds the whole assembly together...................

[8mileshigh]

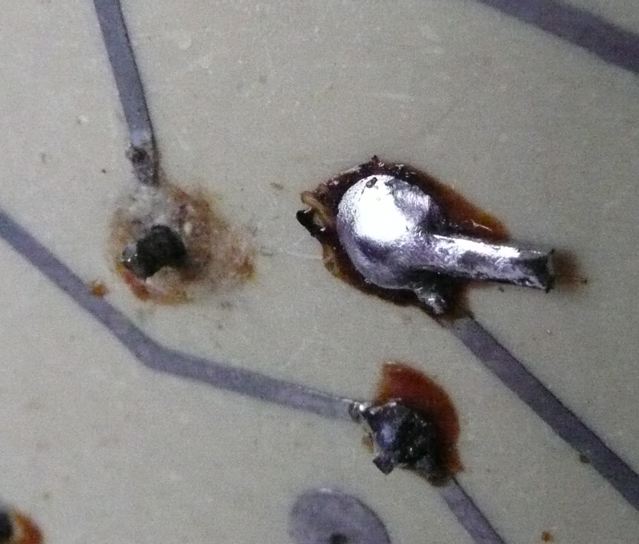

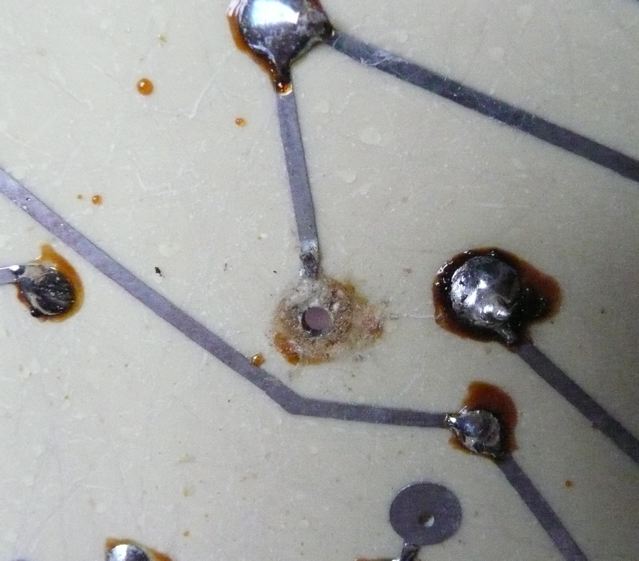

Then it was just a question of inserting the repaired socket into the board. Here, the right hand tail is soldered in and the left hand tail is ready to solder.....................

[8mileshigh]

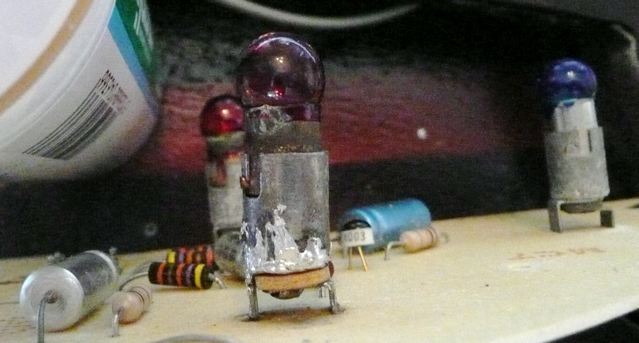

Here we have it..........now in situ...................not pretty.......but solid!

[8mileshigh]

Then it was just a reverse process to put it all back together......................

[8mileshigh]

Here's a second socket that I took out and repaired. The soldering was a little neater on the second one!..........................

[8mileshigh]

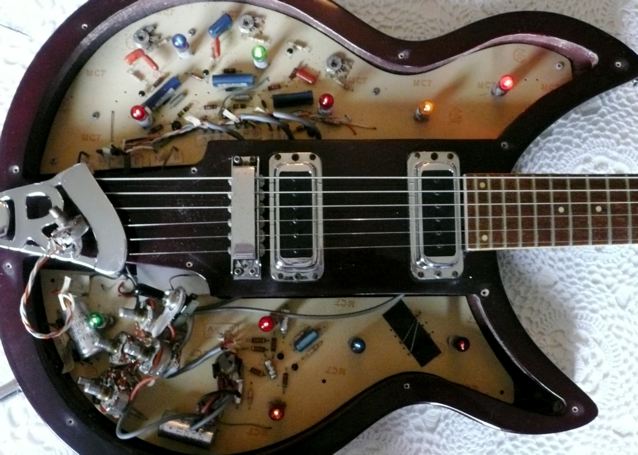

Then the board was back in and ALL lights working! Whoo hoo!....................
