| Author |
Message |

Patrick Magee (Oreca)
Senior Member
Username: Oreca
Post Number: 287
Registered: 03-2004
Posted From: 69.195.186.243
| | Posted on Thursday, April 07, 2005 - 09:11 am: |
|
Springs? Where are these springs supposed to be? |
paul wilczynski (Jingle_jangle)
Senior Member
Username: Jingle_jangle
Post Number: 1360
Registered: 12-2004
Posted From: 24.5.100.79
| | Posted on Thursday, April 07, 2005 - 10:33 am: |
|
Um, between the heads of the screws and the bridge? Their purpose is to put tension on the assembly so the screws don't fall out. They don't work very well, but a Rick looks naked without them! |
Patrick Magee (Oreca)
Senior Member
Username: Oreca
Post Number: 289
Registered: 03-2004
Posted From: 69.195.186.243
| | Posted on Thursday, April 07, 2005 - 08:21 pm: |
|

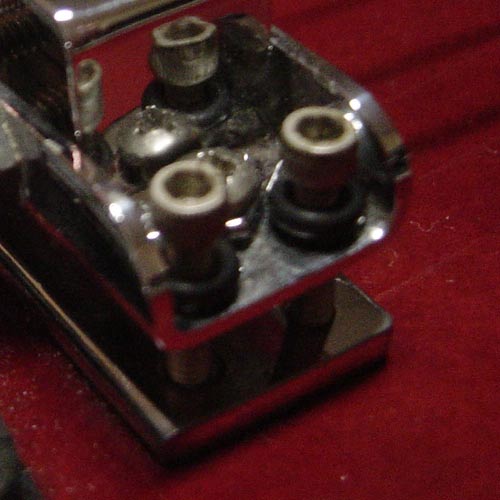

Do you mean this little rubber black thing?
 |
Ken Joseph (Ken_j)
Senior Member
Username: Ken_j
Post Number: 385
Registered: 07-2003
Posted From: 69.209.151.7
| | Posted on Thursday, April 07, 2005 - 08:30 pm: |
|
That's where the springs would go. |
Howard Bishop (Ozover50)
Senior Member
Username: Ozover50
Post Number: 492
Registered: 01-2005
Posted From: 203.194.52.54
| | Posted on Friday, April 08, 2005 - 07:51 am: |
|
No wonder they're falling out. My boss tells me that unless you're under tension you don't perform!!
Looks like the springs have been replaced with grommets in order to provide a pseudo lock nut. Different!! |
Ken Joseph (Ken_j)
Senior Member
Username: Ken_j
Post Number: 389
Registered: 07-2003
Posted From: 69.209.154.171
| | Posted on Friday, April 08, 2005 - 09:55 pm: |
|
Here's the page that shows them, part #06114: http://www.rickenbacker.com/pdf/gbridge.pdf
I've seen grommets used here before. The grommet get pinched between the side of the bridge and the threads preventing the screw from turning. |
