Hello,

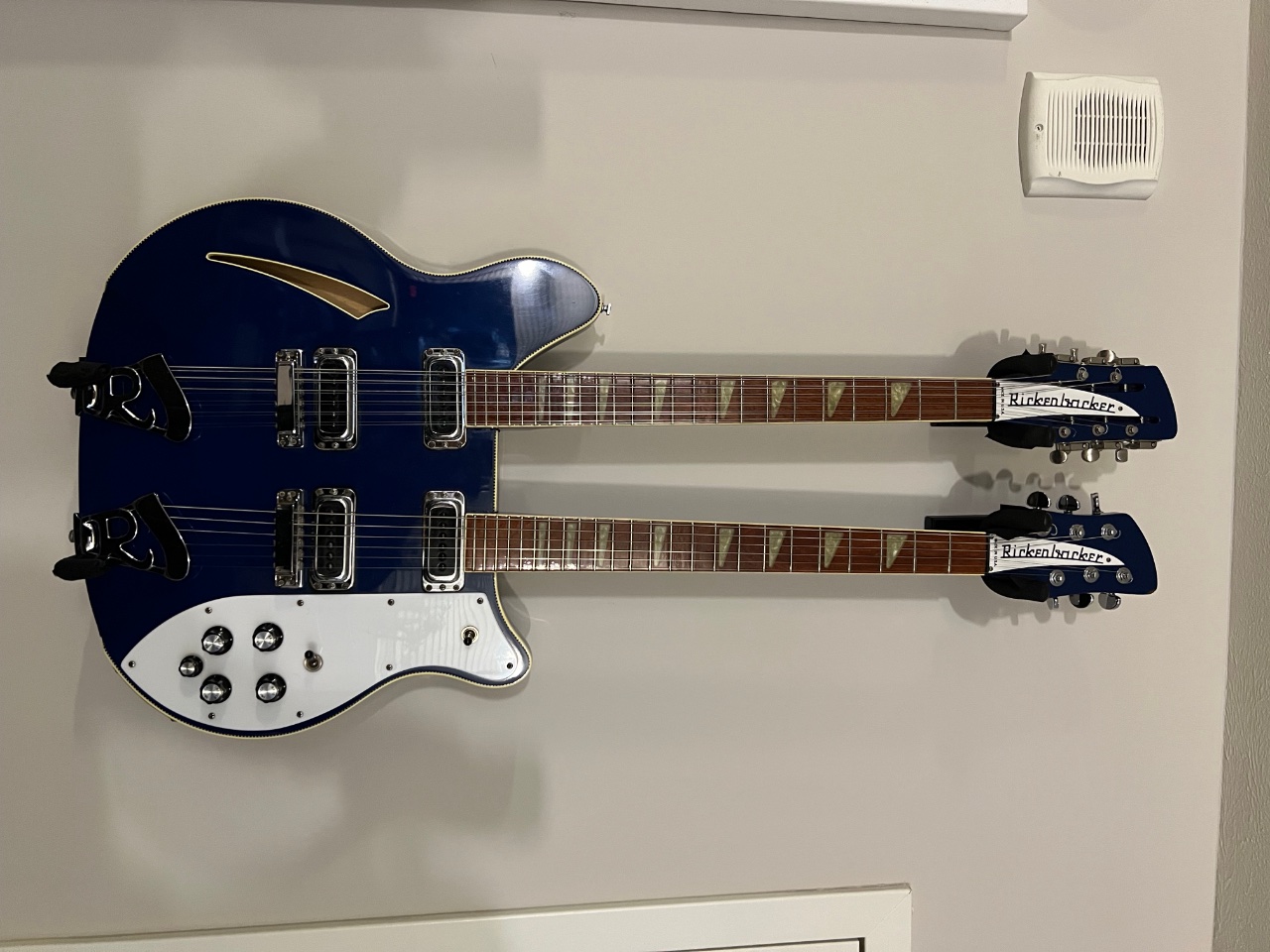

I've had a few rickenbackers over the years, but figured it was time to join this forum as I become the proud owner of a 1977 Azureglo Double Neck! Its a stunning guitar and in amazing shape:
The neck pickups aren't functioning, which suggests to me a high likelihood of a re-solder job. Before I open this beast, just wondering if there is anyone out there who may have a wiring schematic for a 362/12 double neck. In addition to checking the integrity of the soldered pot connections, I want to ensure its originality. Appreciate any help. Thanks!
P
362/12 Double neck- Wiring Diagrams?
Moderators: rickenbrother, ajish4
Re: 362/12 Double neck- Wiring Diagrams?
https://youtu.be/hq-E3rI4dkg
I don't have a schematic, but I made a little video for you. Hope this helps.
I don't have a schematic, but I made a little video for you. Hope this helps.
Re: 362/12 Double neck- Wiring Diagrams?
Correct me if I am wrong, but I would think that the wiring would be the same as for a 4080 (two pickups x 2, 5 control pots, 1 three-way switch, 1 two-way switch). I made a CRUDE drawing for someone a while ago of the wiring on my 4080:

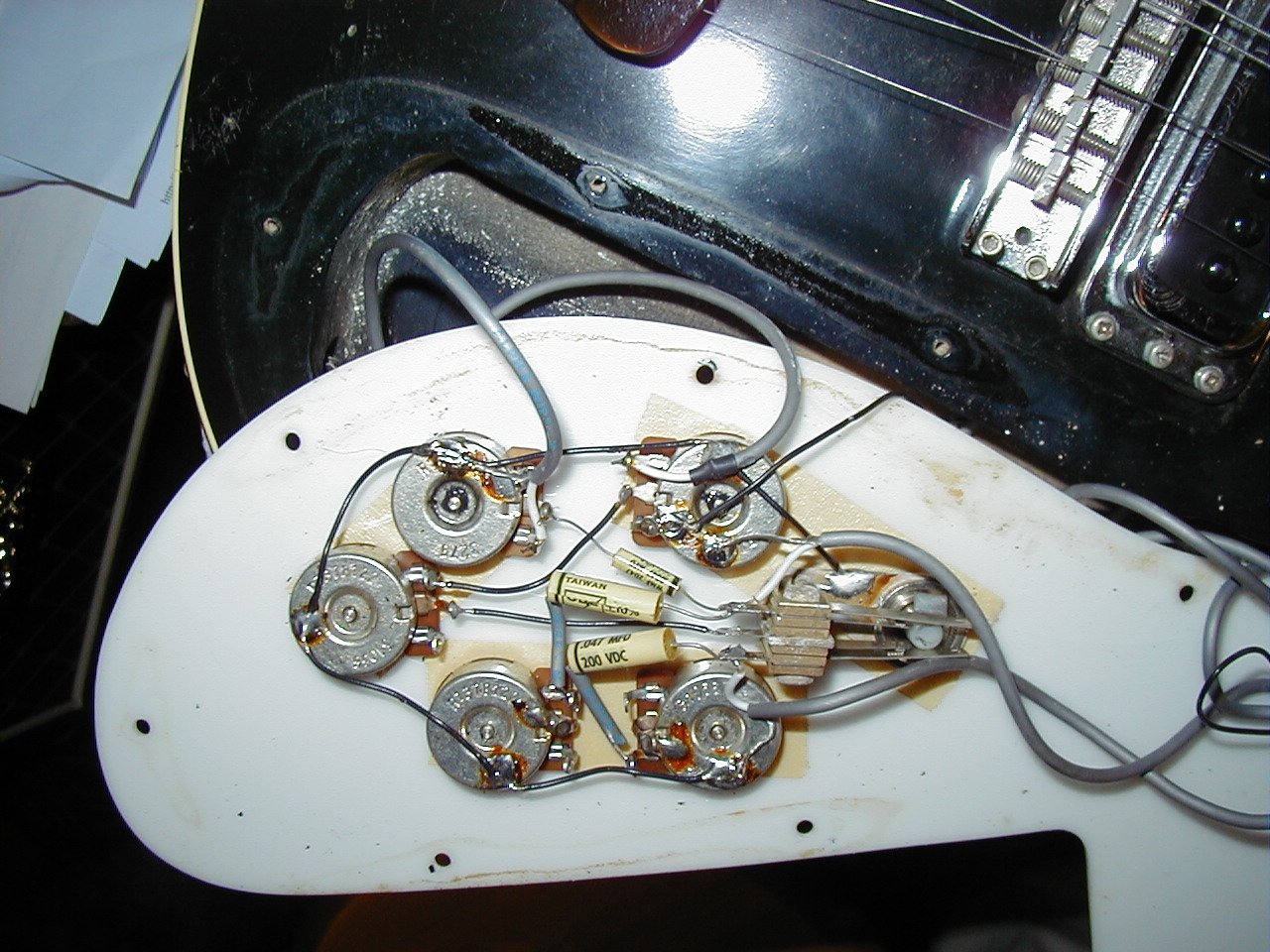

Here are some pictures from the back of the pickguard:
Hopefully these will be of some help for you.
Here are some pictures from the back of the pickguard:
Hopefully these will be of some help for you.
It is better, of course, to know useless things than to know nothing. - Seneca
Re: 362/12 Double neck- Wiring Diagrams?
Wow- thank you both! Very helpful- I really appreciate the effort! I probably get at it over the long weekend and let you know how it goes. Thanks again!
Regards,
Paul
Regards,
Paul
Re: 362/12 Double neck- Wiring Diagrams?
Wow, cool guitar! The very first Rickenbacker I ever saw for sale, was exactly like this guitar. A double neck semi hollow 362/12 in the same color Azureglo, was hanging in Parker Music in Houston, TX circa 1981-82.
325c64 JG,325c58 JG, 325/12v63 JG, 350v63 JG, 1996 FG, 360/12c63 FG, 360/6 Carl Wilson FG, 1993Plus FG, 660/12 FG, 425 FG (1965), 360/12 FG (1965/67), 4003 FG with v63 mods.
- kennyhowes
- Veteran RRF member
- Posts: 4915
- Joined: Sat Jan 27, 2001 1:03 am
- Contact:
Re: 362/12 Double neck- Wiring Diagrams?
Azureglo is definitely less sighted and very cool. Welcome to Club 362!
If it’s the neck pickups on both necks, I bet it’s the Rick O Sound jack at fault. Caig DeOxit is your friend, spray both jacks real good and try again.
If it’s the neck pickups on both necks, I bet it’s the Rick O Sound jack at fault. Caig DeOxit is your friend, spray both jacks real good and try again.
