WTB: very strange old mic cable
Moderator: jingle_jangle
WTB: very strange old mic cable
Long shot, but just in case... anyone have a mic cable that connects 5/8" screw-on (like old harp mics) to XLR?
Re: WTB: very strange old mic cable
Amphenol connector? If so, I can check my resources.
Re: WTB: very strange old mic cable

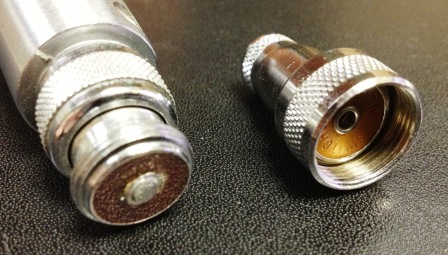

Like this? I happen to have one here on an old mic I'm trying to restore.
Amphenol MC1F and Switchcraft 2501F
Doubt you'll find a cable already made up since this is usually a high impedance connector, unbalanced, whereas the XLR is typically low impedance, balanced line. But I've made them up before in the past.
Connectors are still readily available- best bet eBay.
Best practice is to use as short a cord as possible with single conductor shielded cable then go to a balun with XLR out then on to the snake or board. Could also use a cable MC1F to phone plug, then into a DI, preferably a 48 volt phantom powered one.
Amphenol MC1F and Switchcraft 2501F
Doubt you'll find a cable already made up since this is usually a high impedance connector, unbalanced, whereas the XLR is typically low impedance, balanced line. But I've made them up before in the past.
Connectors are still readily available- best bet eBay.
Best practice is to use as short a cord as possible with single conductor shielded cable then go to a balun with XLR out then on to the snake or board. Could also use a cable MC1F to phone plug, then into a DI, preferably a 48 volt phantom powered one.
Re: WTB: very strange old mic cable
Thanks guys! Great info John. That's the one. I was wrong to want XLR... and I should know better, it's a hi-z mic, so that would be 1/4", yep. I've located a connector. Now just to cross my fingers and hope the ribbon still works!
Re: WTB: very strange old mic cable
This guy can probably take care of any issues you may have with the mic.jdogric12 wrote:Now just to cross my fingers and hope the ribbon still works!
Re: WTB: very strange old mic cable
There's nothing wrong with using an XLR for high impedance- they're great connectors, terrific shielding. The problem is that people then want to plug them into a low impedance balanced line system which may or may not work well, depending on the gear's input circuit.jdogric12 wrote:I was wrong to want XLR... and I should know better, it's a hi-z mic, so that would be 1/4", yep. I've located a connector. Now just to cross my fingers and hope the ribbon still works!
The mic I have has a shot coil/diaphragm cartridge that Shure doesn't make anymore. I hope you have better luck.
Re: WTB: very strange old mic cable
Yes, it's not the connector, just the circuitry, and using a connector such as an XLR, which is the standard connector for a low impedance (nominal 600 ohms) balanced (same as differential) configuration may lead to confusion down the road.johnhall wrote:There's nothing wrong with using an XLR for high impedance- they're great connectors, terrific shielding. The problem is that people then want to plug them into a low impedance balanced line system which may or may not work well, depending on the gear's input circuit.jdogric12 wrote:I was wrong to want XLR... and I should know better, it's a hi-z mic, so that would be 1/4", yep. I've located a connector. Now just to cross my fingers and hope the ribbon still works!
The mic I have has a shot coil/diaphragm cartridge that Shure doesn't make anymore. I hope you have better luck.
Of course, if you do as John suggested and use a balun (balanced to unbalanced impedance transformer), then things will match up and work as everyone expects...
I have NO idea what to do with those skinny stringed things... I'm just a bass player...
Re: WTB: very strange old mic cable
Which old Shure?johnhall wrote:There's nothing wrong with using an XLR for high impedance- they're great connectors, terrific shielding. The problem is that people then want to plug them into a low impedance balanced line system which may or may not work well, depending on the gear's input circuit.jdogric12 wrote:I was wrong to want XLR... and I should know better, it's a hi-z mic, so that would be 1/4", yep. I've located a connector. Now just to cross my fingers and hope the ribbon still works!
The mic I have has a shot coil/diaphragm cartridge that Shure doesn't make anymore. I hope you have better luck.
