My Homemade Pedal Board

[squirefan01]

This past week, I made a nice pedal board box out of pine, for home use only. Here are a few photos:

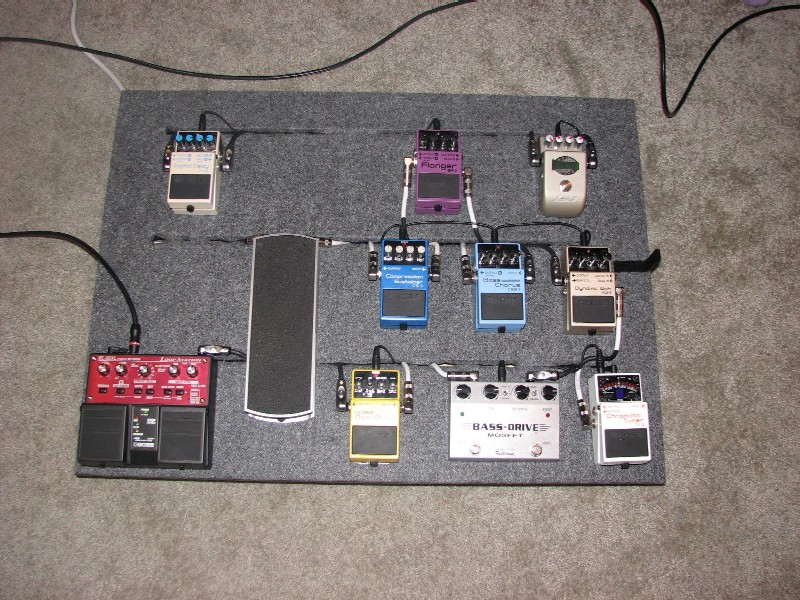

Top View

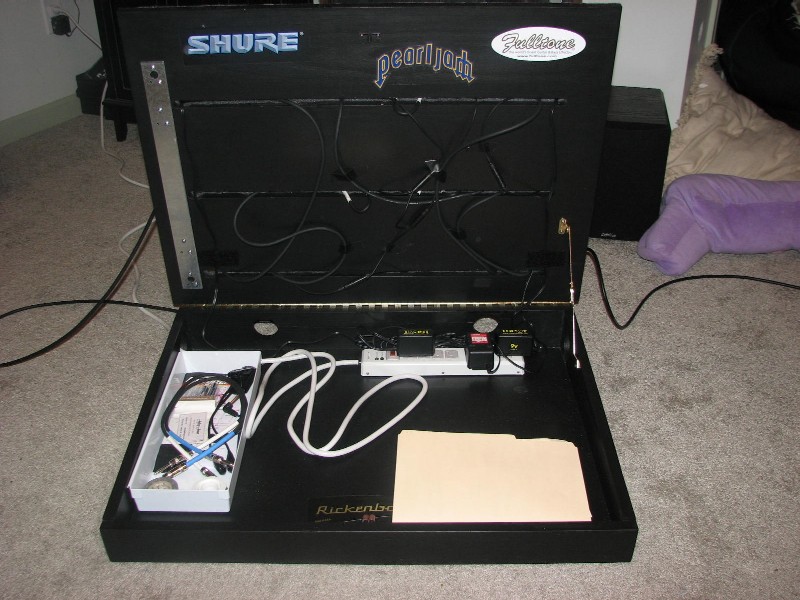

Inside View

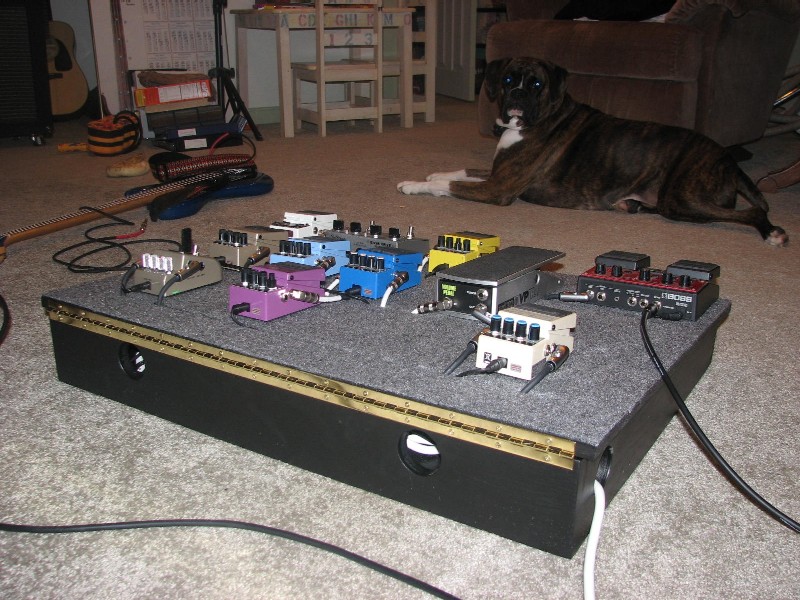

Rear View

The metal bar on the left inside cover was necessary, as the slots I cut weakened the structure and it was bending a bit when I lifted to cover. The hinge on the right to keep the cover open is great for wiring. All pedals are velcro's to the tope, which is a nice loop fabric that I got from a auto stereo installation place really cheap. The piano hinge on the back is great, and there is a metal tab on the right top that I connect a mini-LED light to to see in the dark.

I was pretty happy with the design in the end, for about $40 in wood.

-Greg

[jps]

It looks like you are missing a few pedals!

[beatlefreak]

Looking good, Greg!

[scotty]

Nice Job Greg I see your (Boxer) is it a boxer?likes it aswell

[phlemmy]

This is my guitarist's board...

[sloop_john_b]

Nice job, Greg!

Here's my rig circa '04 (boards from nycpedalboards.com):

[kenposurf]

Nice...make your own and get it the way you want...like some of those voodoo lab pedals also

[jps]

I have the older Pedal Power and the Tremolo by VL, great stuff.

[squirefan01]

Thanks! Yeah, that's our boxer Zodie...a female who's just about 3 years old now. I always wanted to get a picture of her here somehow to show to Mr. Doseck.

It is alot of pedals. Before this I was not stringing them all together, but wanted to fit them all on here and see what happens. I usually keep the Fulltone, Chorus & tuner in the string at least.

[cheyenne]

Mr. Doseck??? Please.

Great looking Boxer Greg!!! Beautiful markings..

Your pedalboard looks great as well.
