Re: Lets talk about horseys
There are some other mods, too, as you can see that I did to that 4001V63. Eventually, I did put a '60s (rebuilt) magnetic HS PU in the bass, along with a mid '60s TRC as shown in the photos below (which I may be putting on another bass, some day):
I added the .0047 cap sometime after installing the magnetic HS PU in the bass to good effect IMO.
I put the RI HS PU back in the bass when I sold it, and put the magnetic HS PU in my March '73 4001 (it had also been in my former May '08 4003 for a while, too. That pickups gets around! ):

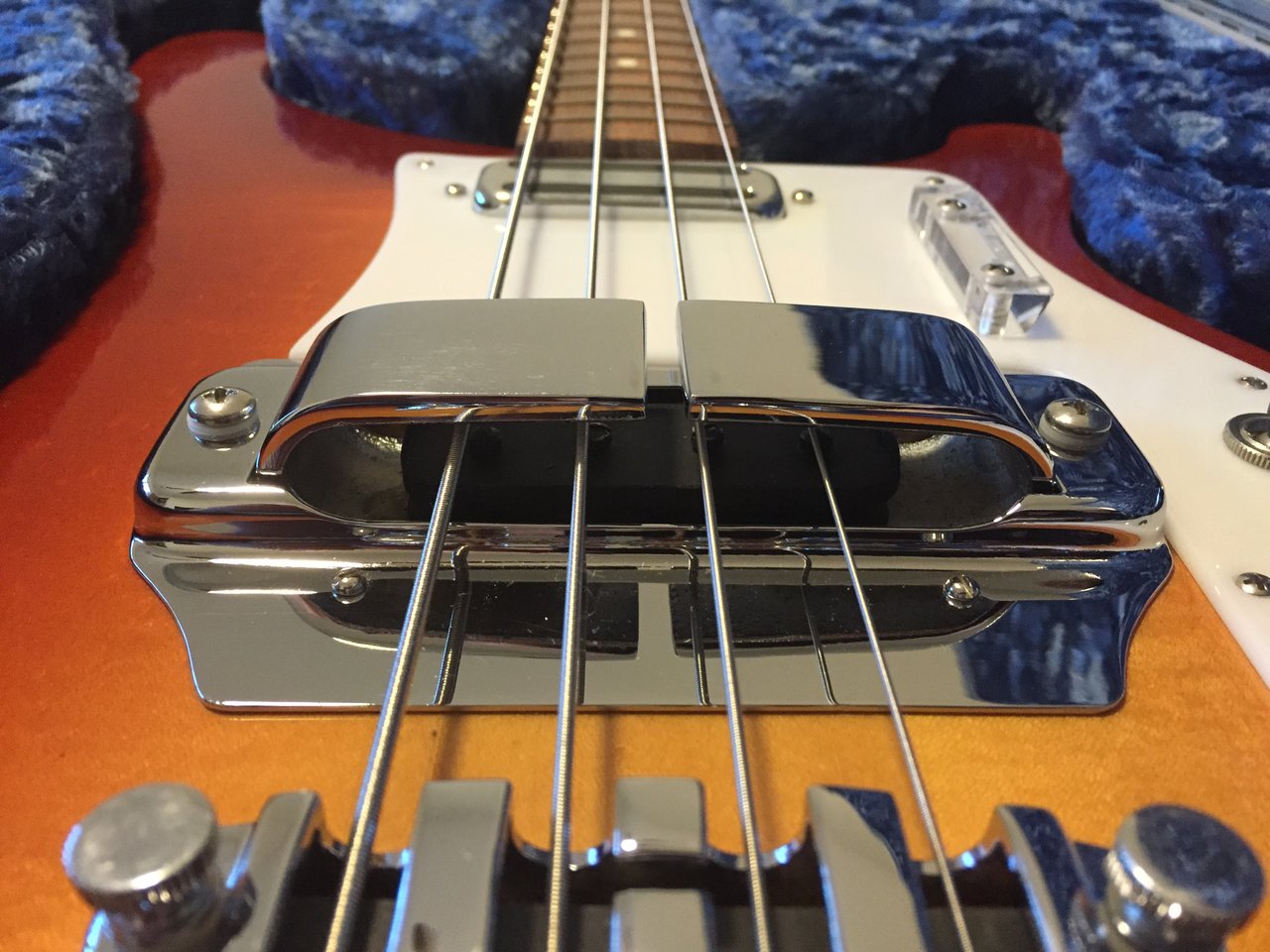

Here is a photo showing that there is quite a bit of string clearance in this particular pickup.
I added the .0047 cap sometime after installing the magnetic HS PU in the bass to good effect IMO.
I put the RI HS PU back in the bass when I sold it, and put the magnetic HS PU in my March '73 4001 (it had also been in my former May '08 4003 for a while, too. That pickups gets around! ):
Here is a photo showing that there is quite a bit of string clearance in this particular pickup.
Re: Lets talk about horseys

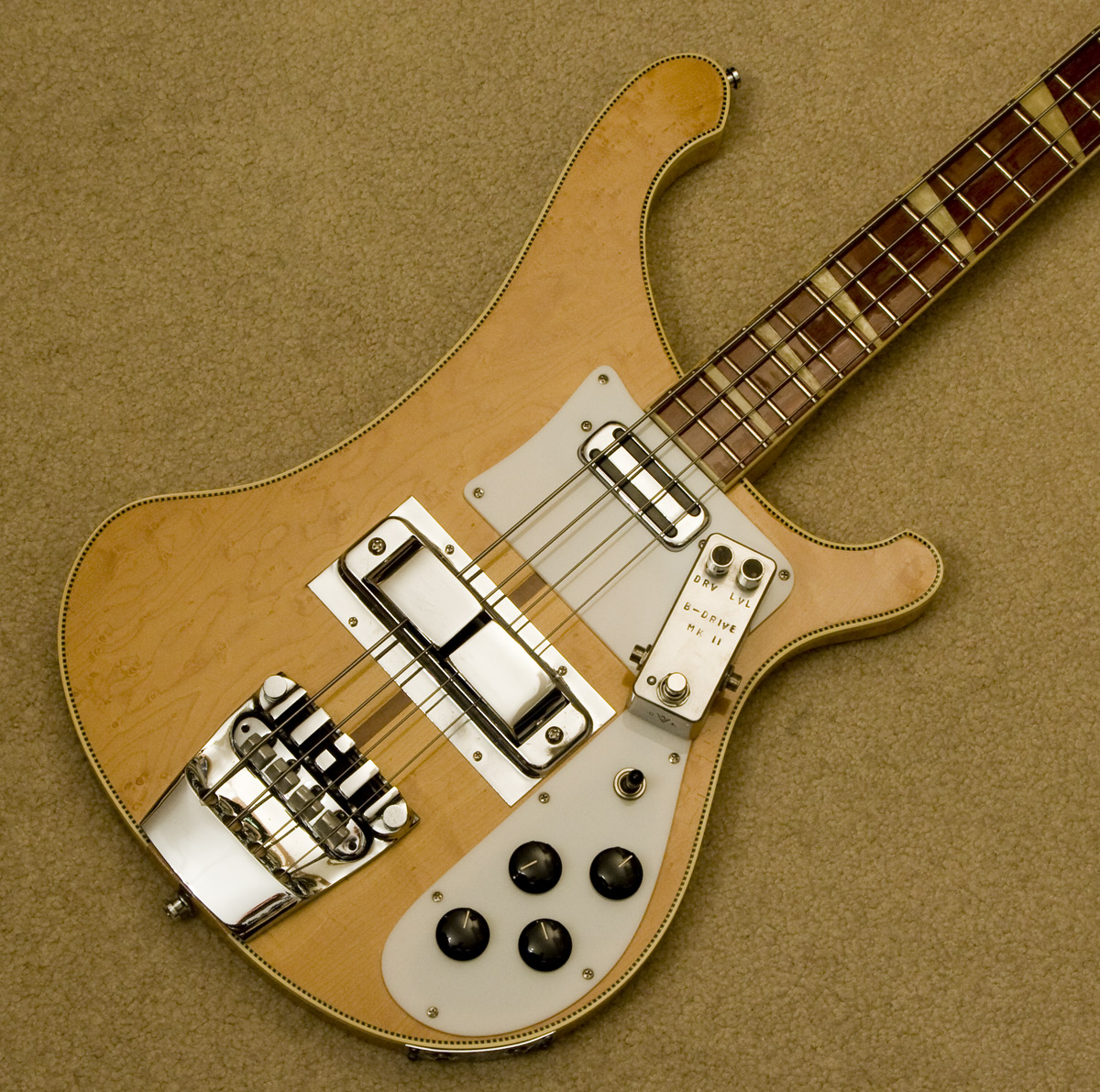

Shown below is a photo of the magnetic HS PU in its current home:
The Cave pedal is now being used with the 4004L SPC as it adds an amazing amount of gain for a passive pedal ( ) which comes in handy with the relatively low output of the pickups in that bass.
The Cave pedal is now being used with the 4004L SPC as it adds an amazing amount of gain for a passive pedal ( ) which comes in handy with the relatively low output of the pickups in that bass.
Re: Lets talk about horseys
Why would you want to lower the pickup so much that string clearance against the shoes becomes a problem? (just being curious) Is it to get even output between that vintage toaster and the very hot V63 RIHS? If so I would suggest unwinding the RIHS. Start by taking it down to 9K and see (e.. hear) what you thing.Revbrodiddley wrote:Got the strings on the way, my friend! That change is the obvious part for me. Sorry I didn't include it in the original post. I'm asking the questions about the less obvious bits. I've definitely experimented with pickup height but with the horseshoe particularly, there is very limited play as the lower the pickup goes, the less string clearance you have, so that at some point action must come down to compensate...which stands to negate the change in pickup height! I have spent the money on the harness, i definitely have NOT spent the money on the Lollar. I got the vintage toaster for 200 dollars...which is the same as a reissue toaster...so I don't feel I've really gone all out just yet! All good points though and I thank you for the thought!
One thing I forgot to say about the Lollar HS is that the output is a good match for 7.xK neck toaster, so the Lollar shouldn’t need to be lowered or raised to extremes in order to match output to a 7.xK toaster. On both my basses I have ended up with the strings close to being in the middle between poles and top of the shoes to get match output.
-
- New member
- Posts: 21
- Joined: Thu Feb 09, 2012 11:47 am
Re: Lets talk about horseys
Not only to get it the pickups even with each other but also just to get each lower in output in general! To my ears they are both hot to the point of just being muddy...a tube amp that I would normally be able to drive a little to say 4 on volume now has to be turned to 2 to get the same volume (hence my knowing it wasn't just the strings that were making the difference). I actually like my action a little on the high side on my basses so putting the horseshoe pickup low and action high is, as you would imagine, a bit of a conflict.
Thanks everyone for all the info, I think I'll probably give the Lollar a try...might even give a lapsteel horsie a mod and a try at some point. I love trying all the options out there to find what I like the best, so these are all positives.
Thanks everyone for all the info, I think I'll probably give the Lollar a try...might even give a lapsteel horsie a mod and a try at some point. I love trying all the options out there to find what I like the best, so these are all positives.
Re: Lets talk about horseys
I guess you still have the original, very hot toaster in your V63. Another thing is that the TI you have on the V63 produces a much stronger output than the Pyramid Gold on your 4003 (Pyramids are the lowest output flats I have tried). Much hotter pickups and strings with a much stronger output – yes, the output from your V63 will be dramatically different.
There are three (as far as I know) types of nickel flats out there – TI, Pyramid Gold, and Optima 4099: TI are the brightest and also have way stronger output than Pyramid; Pyramids are the cleanest sounding (less high harmonics) with the lowest output; Optimas are brighter than Pyramid but not as bright as TI, and have a slightly stronger output than Pyramid while not as strong as TI. (I guess TIs have a more magnetic string core wire, and therefore more affected by the magnetic field from pickups.)
Btw: Pyramid Gold and Optima 4099 works very well with the Lollar HS. For me TI didn’t work very well with the Lollar HS, as if those high output strings sort of over powered the pickup.
There are three (as far as I know) types of nickel flats out there – TI, Pyramid Gold, and Optima 4099: TI are the brightest and also have way stronger output than Pyramid; Pyramids are the cleanest sounding (less high harmonics) with the lowest output; Optimas are brighter than Pyramid but not as bright as TI, and have a slightly stronger output than Pyramid while not as strong as TI. (I guess TIs have a more magnetic string core wire, and therefore more affected by the magnetic field from pickups.)
Btw: Pyramid Gold and Optima 4099 works very well with the Lollar HS. For me TI didn’t work very well with the Lollar HS, as if those high output strings sort of over powered the pickup.
- squirebass
- Veteran RRF member
- Posts: 1563
- Joined: Fri Oct 13, 2000 11:05 pm
Re: Lets talk about horseys
Thanks everyone for their input, this is giving me a lot of food for thought! Please keep it coming!
-
- New member
- Posts: 21
- Joined: Thu Feb 09, 2012 11:47 am
Re: Lets talk about horseys
Thanks Wiker! I had definitely noticed the difference between the TIs and the Pyramids, but didn't know that about Optimas. Very helpful!
- Captain Bob
- Member
- Posts: 237
- Joined: Thu May 27, 2010 6:47 pm
- Contact:
Re: Lets talk about horseys

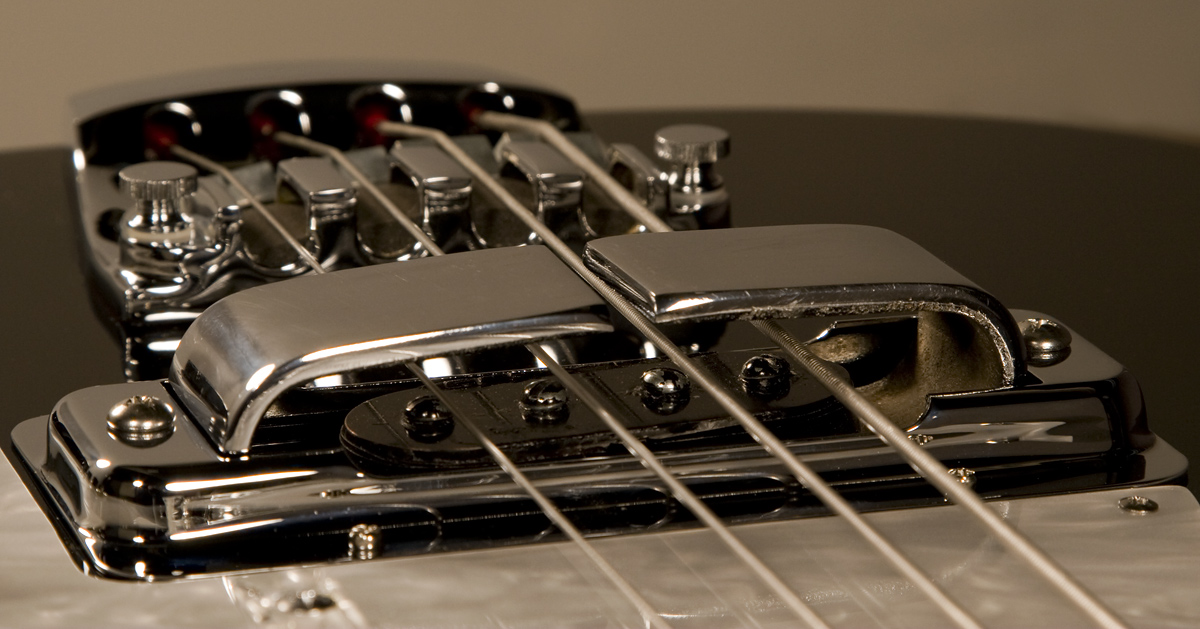

Concerning the HS string clearance concerns discussed earlier. I have previously posted pics of the Snowglo's Lollar HS. Here is a couple quick shots of the '64 4001S....

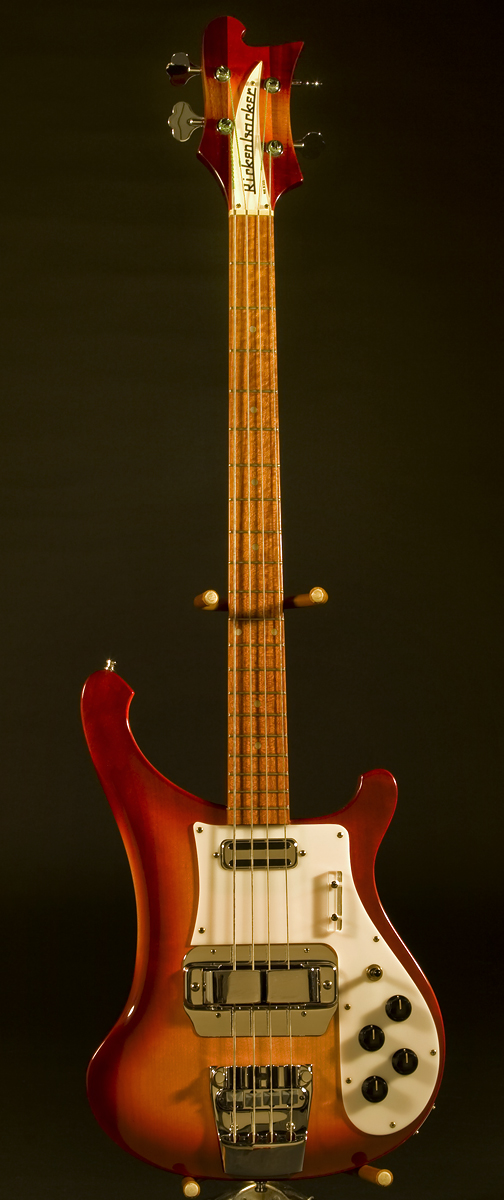

1964 4001S Fireglo
Re: Lets talk about horseys
That looks like a sweet bass, Rob!
- Captain Bob
- Member
- Posts: 237
- Joined: Thu May 27, 2010 6:47 pm
- Contact:
Re: Lets talk about horseys
It really is. And, a lot of different folks did their bits over time to make it happen. Larry Davis, Dane, Sergio,......... I'm just its current custodian
1964 4001S Fireglo
Re: Lets talk about horseys
I'm still very much around...
Re: Lets talk about horseys
I will get a pic of the Lollar HS asap folks its been a busy few weeks so I havent got round to it yet.
By the way I also have a 64 Electro lap steel with a good HS pup that I would be tempted to have
converted into a four pole.
Any recommendations for a pickup doctor here in the UK anyone?
By the way I also have a 64 Electro lap steel with a good HS pup that I would be tempted to have
converted into a four pole.
Any recommendations for a pickup doctor here in the UK anyone?
Re: Lets talk about horseys
Try:pag wrote:IAny recommendations for a pickup doctor here in the UK anyone?
Kent Armstrong
Tel: 01233 822120
- squirebass
- Veteran RRF member
- Posts: 1563
- Joined: Fri Oct 13, 2000 11:05 pm
Re: Lets talk about horseys
Heelllllooooo, Sergio! It has been a long time since we talked, since our 21 fretter discoveries and discussions, hope you are doing well!!!rickcrazy wrote: I'm still very much around...
Re: Lets talk about horseys
Alas, I can't help with a PU doctor Pete. What I'm wondering is whether you (or anyone else) has any experience of the difference in sound (if any) between an original RIC horseshoe and the Lollar variety? I've already replaced the Re-issue HS pup in my V63 with a lap steel-sourced original, to great effect, and have a 4001 FL and a 4003s/8 that I'd like to try the original horsie sound with. However, I'm aware that sourcing lap steel horsies could be difficult and would consider the Lollar if it's comparable.pag wrote:I will get a pic of the Lollar HS asap folks its been a busy few weeks so I havent got round to it yet.
By the way I also have a 64 Electro lap steel with a good HS pup that I would be tempted to have
converted into a four pole.
Any recommendations for a pickup doctor here in the UK anyone?
Here's the Lollar: Ash
1976 4001 "Shadow" Fretless
1978 4002 Walnut
1986 4008 Silver
1999 4001 V63 White
2012 4004 Jetglo
